Initial LifeKeeper GUI Configuration

Logging in to the LifeKeeper GUI

1. Log in to the Windows OS on the first cluster node (sios20-node1) as sios20-ad\lkadmin.

2. From Start > SIOS > LifeKeeper (Admin Only) (or right click > More > Run as administrator), launch the LifeKeeper GUI.

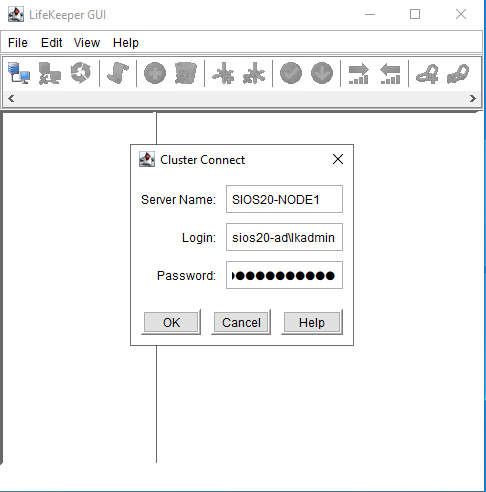

3. Log into the LifeKeeper GUI as sios20-ad\lkadmin.

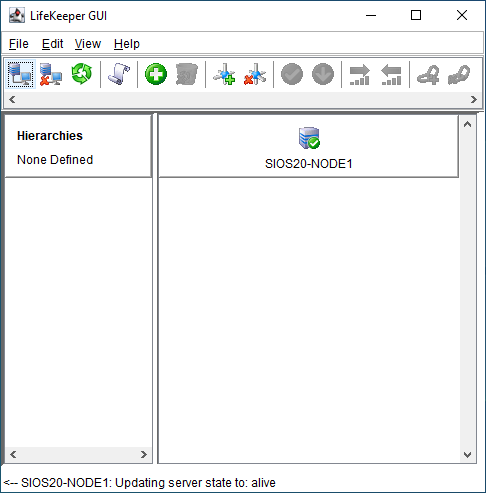

4. After logging in to sios20-node1 the following screen will appear.

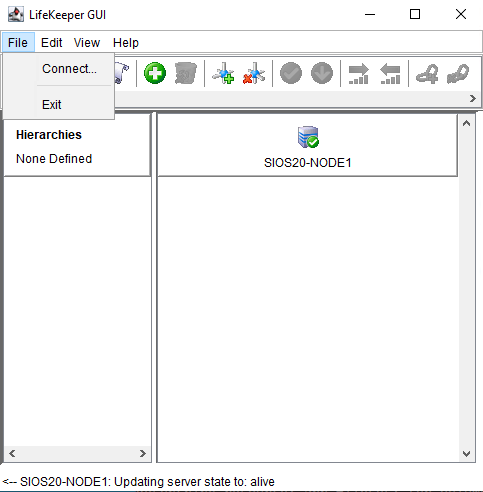

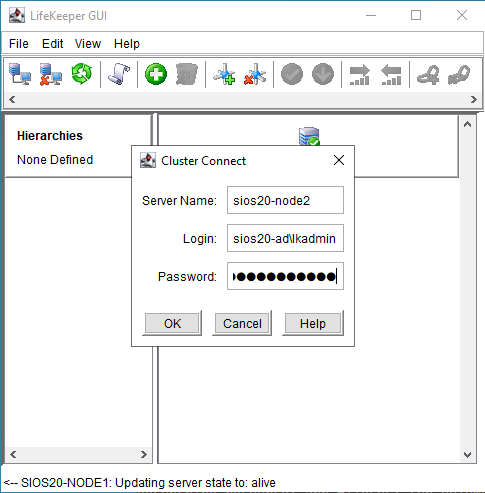

5. Then select File > Connect to connect to sios20-node2.

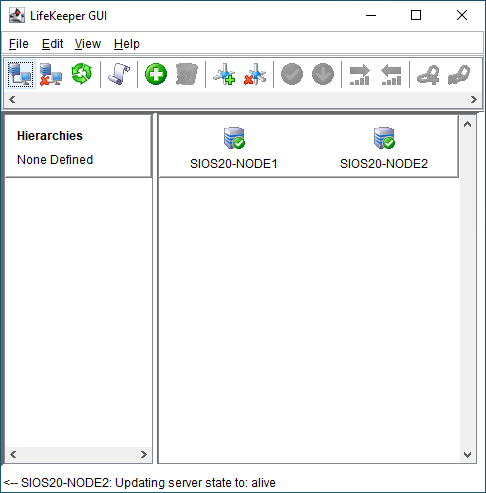

You have successfully logged in to the two cluster nodes.

Create the First Communication Path

1. Create a communication path between the cluster nodes using the values in the following table.

*1 : The second subnet is the primary communication path.

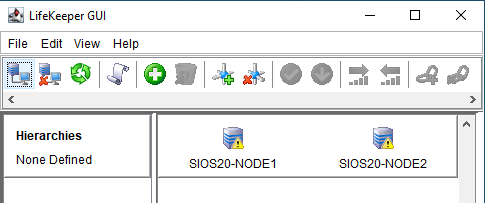

2. From the LifeKeeper GUI menu bar, click Edit > Server > Create Comm Path and follow the prompts and enter the details. When you are finished you will see the following screen.


Create a Second Communication Path

1. Create a second communication path using the values in the following table.

*1 : The third subnet is the secondary communication path.
