Here we create a mirrored volume using the 30GB disk (F drive) added to each cluster node.
- Log in to sios20lknode01 and launch the LifeKeeper GUI.

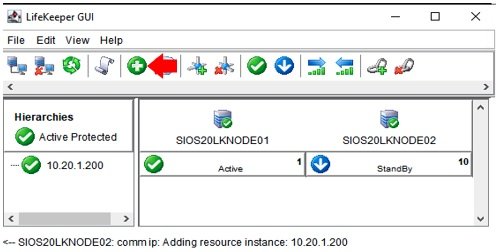

- Click Create Resource Hierarchy (the green +)
- Follow the prompts to enter the details in the following table.
| IP address (create) | ||
|---|---|---|
| Primary Server | sios20lknode01 | |
| Backup Server | sios20lknode02 | |
| Application to protect | Volume | Some volumes may not be visible if you do not scroll. |
| Select Volume | F: | |
| Volume Tag | Vol.F | |
| Volume Type | Create Mirror | |
| Network end points (Target/Source) |
10.20.2.12 / 10.20.2.11 |
|
| Mode | Asynchronous | |
| Backup Priority | 10 |

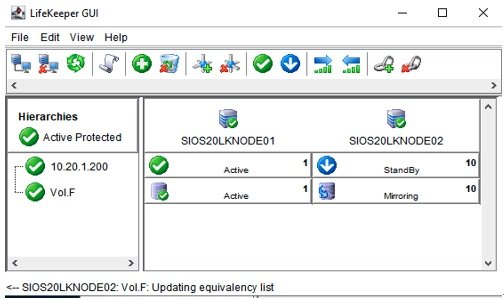

- The following screen appears when the mirror volume resource hierarchy is created.
