Viewing Mirror Status

You can view the Replication Status dialog to see the following information about your mirror:

• Mirror status: Fully Operational, Paused, Resyncing, or Out of Sync
• Synchronization status: percent complete
• Replication type: asynchronous, memory synchronous, synchronous
• Replication direction: from the source server to the target server
• Out-of-Sync: amount of data currently out-of-sync with this peer in KB
• Pending: number of requests sent to the peer, but that have not yet been acknowledged by the peer

Additional information is provided while resynchronization is in progress:

• Resync speed: real-time synchronization speed reported by DRBD
• Estimated finish: estimate on how much longer before in-sync

To view the Replication Status dialog, do the following:

1. Click the View menu, and select the Properties Panel.
2. Click the DRBD resource in the LifeKeeper status display.

OR

1. Right-click the DRBD resource in the LifeKeeper status display.
2. From the pop-up menu, select Properties.

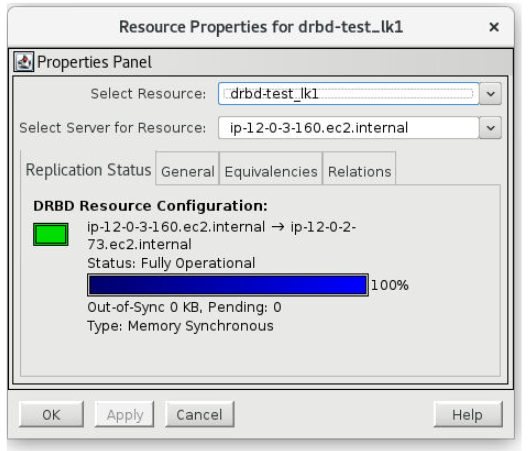

Sample status showing in-sync mirror.

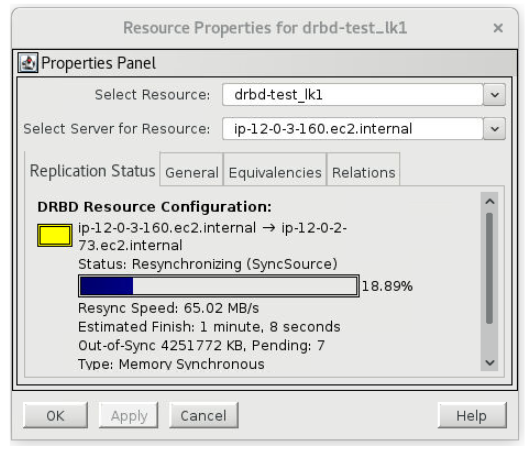

Sample showing status during resynchronization.
