Create a virtual network to use in this environment. Create one address space and two subnets, one of these subnets is for services and the other is for DataKeeper replication.

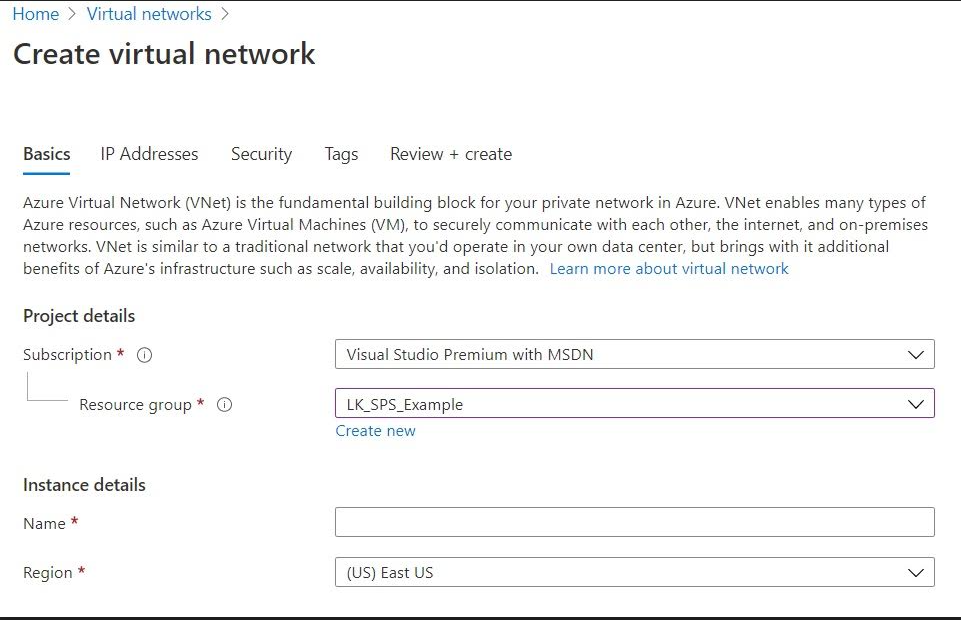

- Select Azure Portal > Virtual networks > Add to create the virtual network and one subnet at a time for this environment.
Enter the required information and click Create.
Use the following values:
| Name | lk4l-vnet |
| Address space | 10.3.0.0/16 |
| Name | lk4l-nw01 |
| Address range | 10.3.1.0/24 |
| Firewall | Disabled (default) |
- Select Azure Portal > Virtual networks > (Virtual network name) > Subnets > Add to add a second subnet for your virtual network.
Enter the required information and click OK.
Use the following values:
| Name | lk4l-nw02 |
| Address range | 10.3.2.0/24 |
