Configure the Oracle Resource

As discussed in Create an Oracle Database (non-PDB), the name of Oracle Instance to protect is ORCL.

1. In the LifeKeeper User Interface, define a new resource. Select to start the Create Resource Wizard (on node-a). Select “Oracle Database” as the Recovery Kit.

2. Enter the following values. Select the default values.

Field	Value
Switchback Type	intelligent
Server	node-a
Oracle SID	ORCL
Username	<Leave blank>
Oracle Listener	LSNR.LISTENER1
Database Tag	ORCL

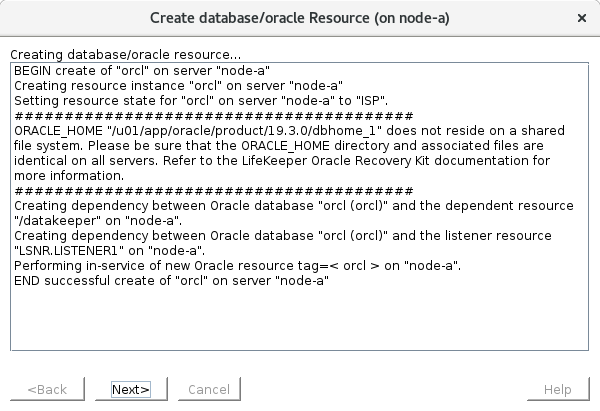

3. The wizard reviews the values. Once this is complete, click “Next >” to continue.

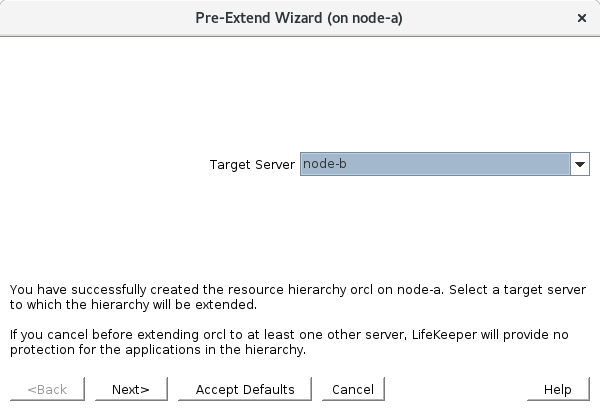

4. The next step is the “Pre-Extend Wizard”. Select the default values.

Field	Value
Switchback Type	intelligent
Template Priority	1
Target Priority	10

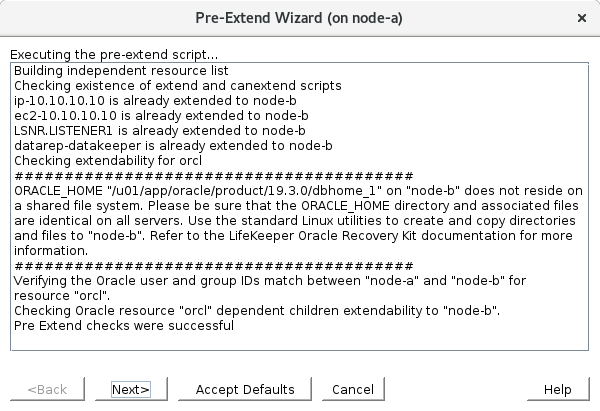

Once the ‘Pre-Extend Wizard’ checks pass, click ‘Next’ to continue.

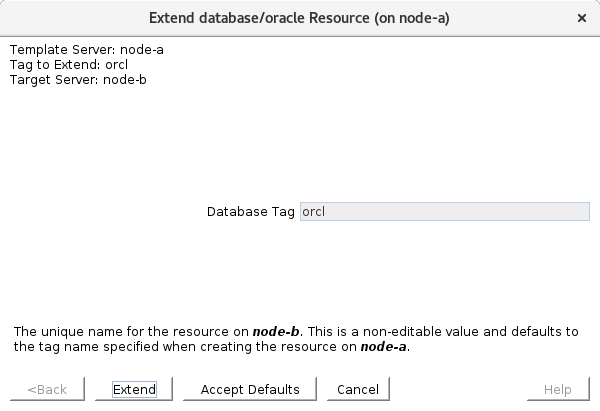

5. On the “Extend database/oracle Resource” wizard, the first choice is selecting the Database Tag. Confirm the default value and click “Extend”.

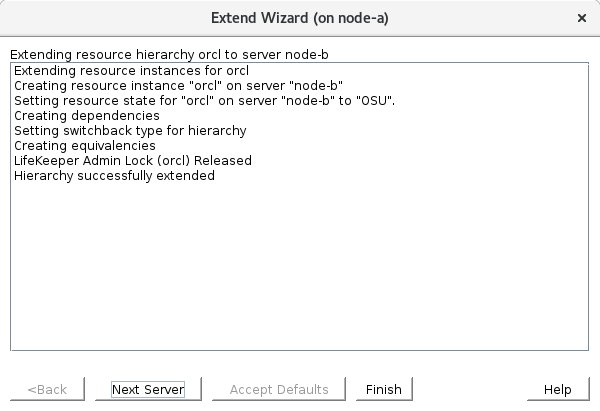

6. Once the Extend Wizard configures the Oracle resource, click “Finish”.

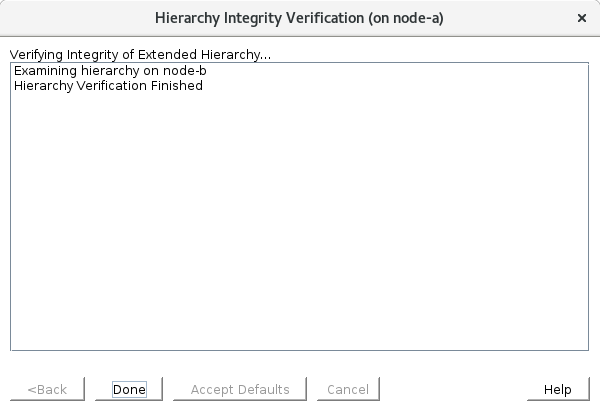

7. The Hierarchy is now checked and complete, click “Done”.

8. Return to the LifeKeeper GUI. The “orcl” resource depends on the /datakeeper resource and LSNR.LISTENER as shown below.
