Update Dependency between Resources

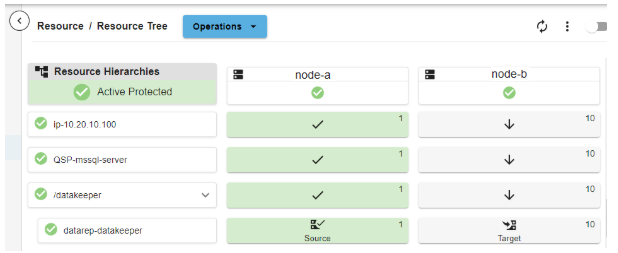

At this point, the LifeKeeper Web Management Console shows the MSSQL related resources as shown below:

The QSP-mssql-server resource depends on the following resources:

• ip-10.20.10.100 (to connect to the database, we need the virtual IP to connect to)

• /datakeeper (to make the database work, we need to mount the underlying filesystem)

This section explains how to define the dependency between resources.

1. Click “Operations”

2. Select “Create Dependency”.

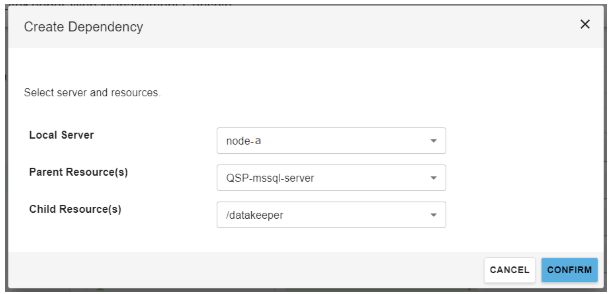

3. Select “node-a” as the server.

4. Select “QSP-mssql-server” as the Parent Resource Tag.

5. Select “/datakeeper” as the Child Resource Tag.

6. Click “Confirm”

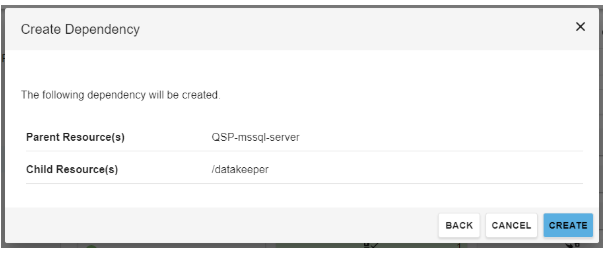

7. Verify your resources, and click “Create”

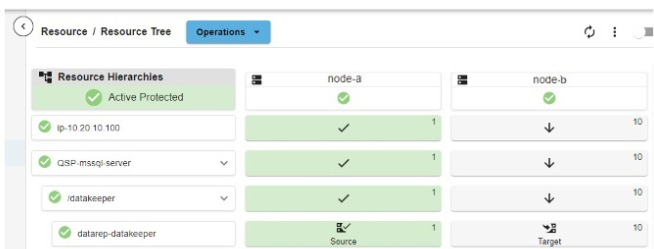

Once the dependency is defined, the LifeKeeper GUI shows the relationship as follows:

8. Repeat the steps with “ip-10.20.10.100”. Now the dependencies are defined.
