Configure the Oracle Resource

As discussed in Create an Oracle Database (non-PDB), the name of Oracle Instance to protect is ORCL.

1. In the LifeKeeper User Interface, define a new resource. Click the “Operations” dropdown and select “Create Resource Hierarchy (on node-a). Select “Oracle Database” as the Recovery Kit.

2. Enter the following values. Select the default values.

Field	Value
Switchback Type	intelligent
Server	node-a
Oracle SID	orcl
Oracle Database User	<Leave blank>
Dependent Oracle Listener	LSNR.LISTENER
Oracle Database Resource Tag	orcl

3. The wizard reviews the values. Once this is complete, click “EXECUTE” to continue.

4. The next step is the “Extend Resource Hierarchy”. Select the default values.

Click NEXT and the Pre-Extend checks will be performed:

Once the “Pre-Extend Wizard” checks pass, click “NEXT” to continue.

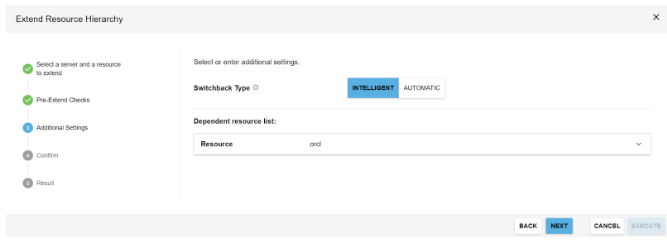

The Additional Settings screen will display.

Field	Value
Switchback Type	intelligent
Template Priority	1
Target Priority	10

5. On the “Extend Resource Hierarchy” wizard, the first choice is selecting the Database Tag. Confirm the default value and click “EXECUTE”.

6. Once the Extend Wizard configures the Oracle resource, click “CLOSE”.

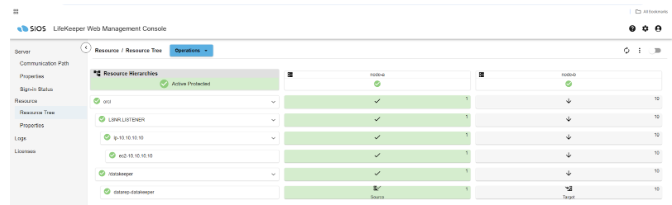

7. Return to the LifeKeeper GUI. The “orcl” resource depends on the /datakeeper resource and LSNR.LISTENER as shown below.
