Oracle Listener Setup (Active System)

To configure the Oracle listener complete the following steps:

1. Log in to sios20lknode01 as sios20\\lkadmin.

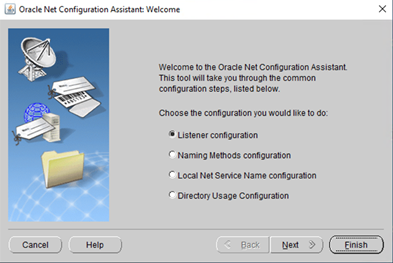

2. Select Start > Oracle-OraDB19Home1 to launch the Net Configuration Assistant.

3. Select Listener configuration. Click Next.

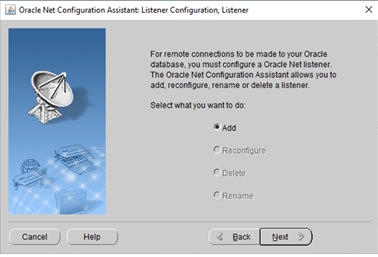

4. Select Add. Click Next

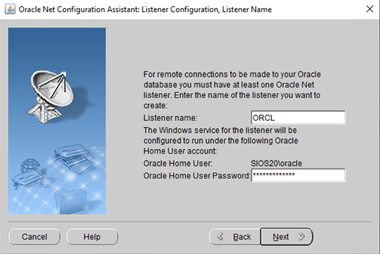

5. Enter ORCL as Listener name. Enter the password for SIOS20\oracls as Oracle Home User Password. Click Next.

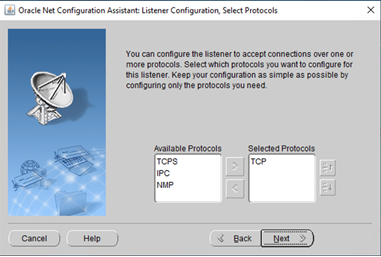

6. Select TCP as Selected Protocols. Click Next.

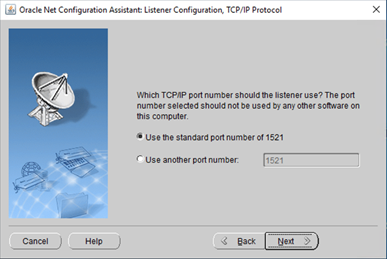

7. Select Use the standard port number of 1521. Click Next.

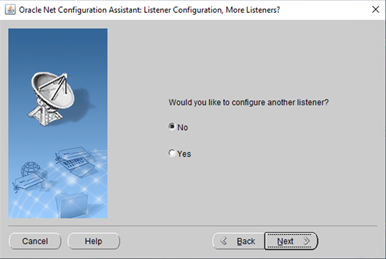

8. Select No to finish the configuration. Click Next.

9. Click Next.

10. Click Finish.
