Create a GenLB resource using the Generic ARK.
- In the LifeKeeper GUI, create a GenLB resource. Click Create Resource Hierarchy (the green + button).
- Follow the prompts to enter the details as described in the following tables.
| GenLB (create) |
||
| Primary Server | LK-NODE01 | |
|---|---|---|
| Backup Server | LK-NODE02 | |
| Application to protect | Generic Application | |
| Restore Script | C:\Users\lkadmin.LKDOMAIN\Downloads\restore.pl | *Note |
| Remove Script | C:\Users\lkadmin.LKDOMAIN\Downloads\remove.pl | *Note |
| Quick Check Script [optional] | C:\Users\lkadmin.LKDOMAIN\Downloads\quickchk.pl | *Note |
| Deep Check Script [optional] | (Empty) | |
| Local Recovery Script [optional] | (Empty) | |
| Application Info [optional] | 12345 Hello | |
| Resource Tag Name | Gen-LB |
| GenLB (extend) |
||
| Backup Priority | 10 |
|---|
*Note: The path name is an example.

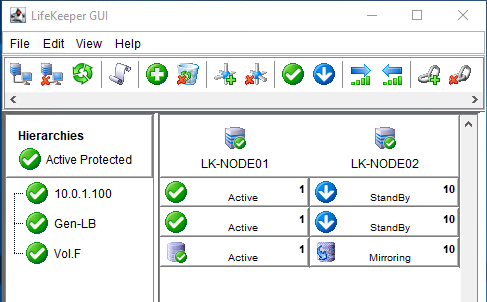

The following screen appears when the GenLB resource is created.
Troubleshooting
| The GenLB resource will NOT come in service. | The IP address has to be configured on the NIC first so that the GenLB resource will have a dependency on the virtual IP address. |
