1. Log in to SIOS20LKNODE01 as sios20\lkadmin.
  1. Using the Windows OS service manager, stop the OracleOraDB19Home1TNSListenerORCL and change Startup type to Manual. After you change it, the following screen should appear.

  1. Select Start > Oracle-OraDB19Home1 to launch Net Manager.

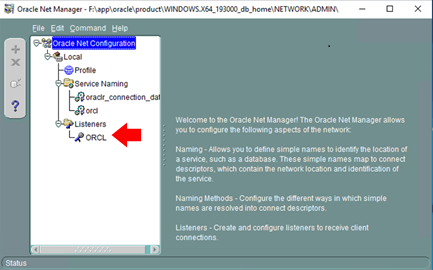

  1. Select Listeners > ORCL in the left pane and select Address1 in the right pane.

  1. Set the following values:
Net Manager Listeners / ORCL
Protocol TCP/IP
Port 1521

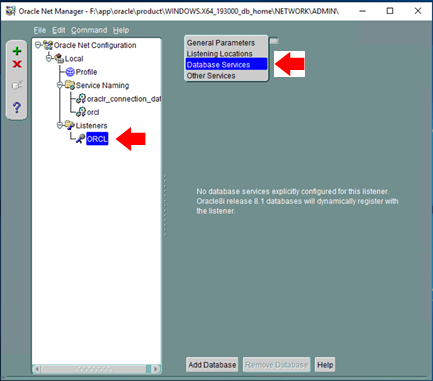

  1. Open the list box at the top right, select Database Services and click Add Database at the bottom.

  1. Enter the following values:
Net Manager Listeners / ORCL
Global Database Name Null
Oracle Home Directory F:\app\oracle\product\WINDOWS.X64_193000_db_home

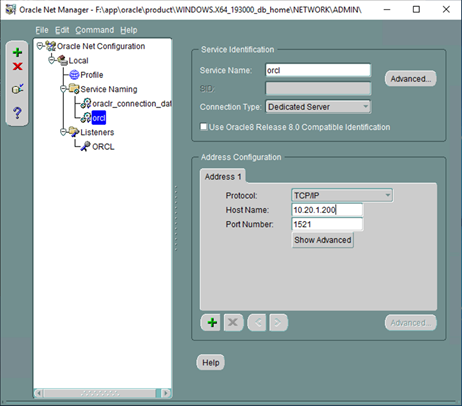

  1. On the left page, select Service Naming > orcl and enter the values as shown below:
Net Manager
Service Naming / orcl
Service Identification
    Service Name orcl
    Connection Type Dedicated Server
    Protocol TCP/IP
    Host Name
    Port Number 1521

  1. From File > Save Network Configuration save the configuration.

  1. Now the configuration of the Oracle listener is complete. From the command prompt execute lsnrctl start orcl.
