Log in to the Windows OS on the active system (SIOS20LKNODE01) as SIOS20\lkadmin.
Launch the LifeKeeper GUI and log in as SIOS20\lkadmin.

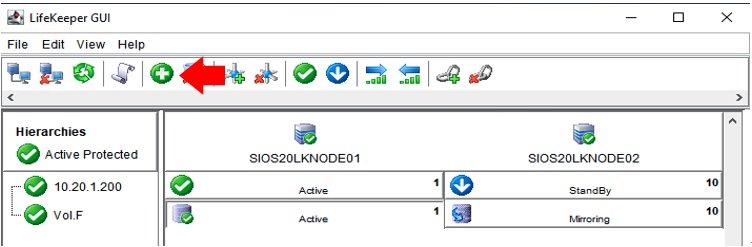

Click Add Dependency.
Enter the values below.
Create Dependency
Server
SIOS20LKNODE01
Parent Resource
pgsql-5432
Child Resource
10.20.1.200
Now you have created the dependencies required for the PostgreSQL resource. The resource hierarchy has been created as follows. Note that the IP address and volume resources are children of the parent resource “pgsql-5432”.
Creating Dependency between GenLB Resource and PostgreSQL Resource
Log in to the Windows OS on the active system (SIOS20LKNODE01) as SIOS20\lkadmin.
Launch the LifeKeeper GUI and log in as SIOS20\lkadmin.
Click *Add Dependency.
Enter the values below.
Create Dependency
Server
SIOS20LKNODE01
Parent Resource
Gen-LB
Child Resource
pgsql-5432
Now you have created the dependencies required for the PostgreSQL resource. The resource hierarchy has been created as follows.
